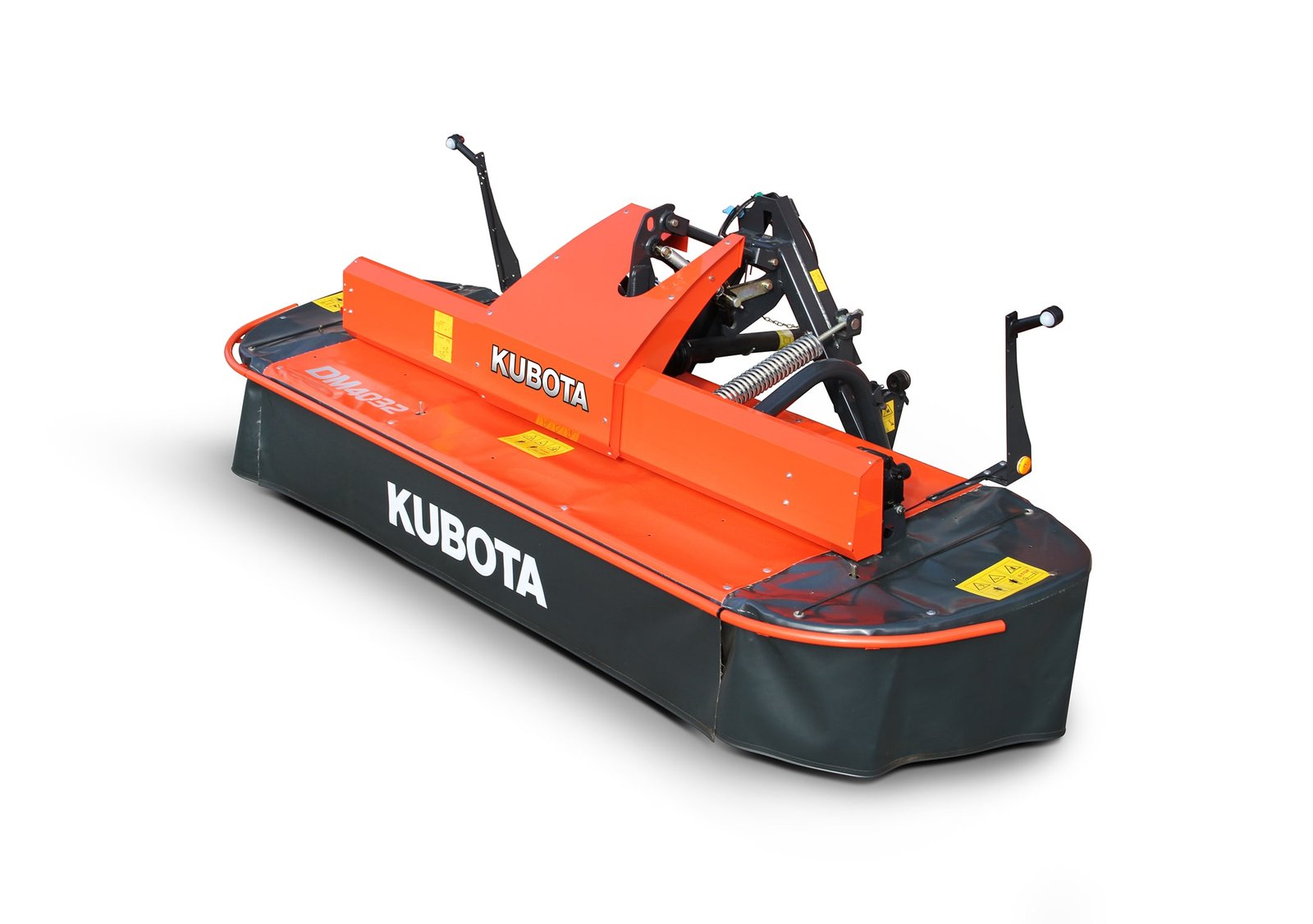

Kubota DM4032
Source-backed specifications and current market configuration for this disc mower.
Specification set: United States · Current Kubota USA disc mower Current Kubota USA lineup requires 40 hp. Current DM4032 specification material publishes 10 ft 6 in, 1,566 lb, Category II hitch and 8 discs / 24 blades. Kubota live product copy states the two-speed driveline can reduce 1,000 rpm to 750 rpm Eco Speed. The 2026 full-line catalog notes that an A Frame Mounting Kit is required for DM4032.
Machine Configuration
Machine configurationDisc mower
Official market scopeUnited States current lineup
Kubota disc mower seriesDM4000
Dimensions & Weight
Approximate weight1566 lb
Transport width9'10"
Attachment to Tractor
Hitch categoryCategory II
Drawbar / pin hitchNot applicable
PTO speed1000 (750 Eco Speed by pulley change)
Minimum PTO horsepower required40 hp
Mower Operation
Number of discs / blades8 / 24
Hydraulic remotes required1
Cutterbar operating range-17° / +17°
Stubble height0.78–1.97 in
Mower Performance
Cutting width10'6"
Sources
Specifications on this page are tied to the cited source records and the selected market/configuration version.
