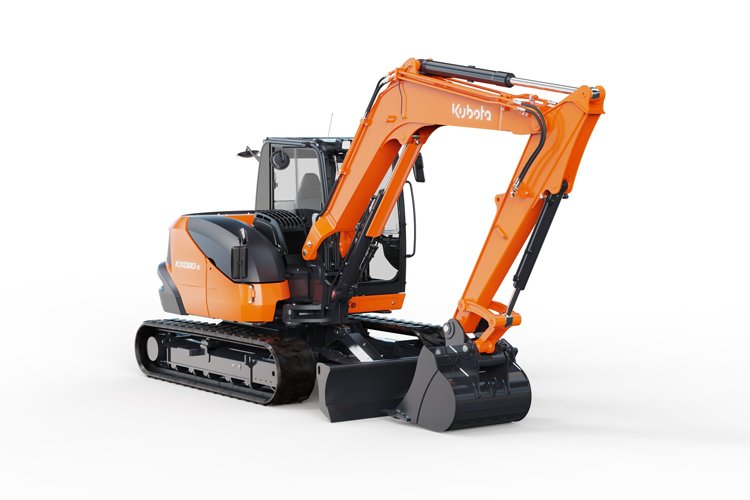

Kubota KX080-5
Source-backed specifications, maintenance, parts and published market/configuration reference for this mini excavator.
Specification set: United States · Kubota USA 2026 Full Product Line specification · Current Current status corroborated by live Kubota USA series page. Operating weight uses the exact 2026 catalog basis shown in the specifications; slash-separated travel and auxiliary-flow values are preserved without assuming ordering beyond the published table.
Machine Configuration
Machine configurationMini excavator
Official market scopeUnited States current catalog
Kubota excavator seriesKX Series
Engine
Engine modelV3307-CR-TE5
Published engine power66.6 hp
Engine displacement203.3 cu in
Excavator Performance
Maximum digging depth15' 1.1"
Maximum dumping height17' 2.7"
Bucket breakout force14660 lbf
Travel
Maximum traveling speed, published pair1.7 / 3.0 mph (Kubota published pair)
Hydraulics
Pump capacity44.6 gpm
Auxiliary hydraulic line flow26.4 / 17.6 gpm
Dimensions & Weight
Operating weight18365 lb
Operating weight configurationCab, rubber
Ground contact pressure5.3 psi
Sources
Specifications, capacities, maintenance, documented part fitment and attachment fitment on this page are tied to cited source records. Version-scoped records use the selected market/configuration context where one is available.
