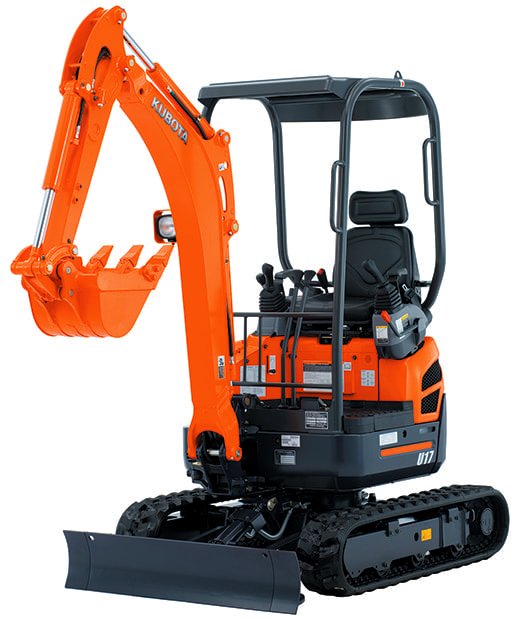

Kubota U17
Source-backed specifications and current market configuration for this mini excavator.
Specification set: United States · Direct Kubota U17 specification sheet U17 remains separately buildable on the live Kubota USA U Series page alongside U17-5. Direct Kubota U17 sheet is used for model-specific specifications; no U17-5 values are transferred to U17.
Machine Configuration
Machine configurationMini excavator
Official market scopeUnited States current catalog
Kubota excavator seriesU Series
Engine
Engine modelD902-E4
Gross engine power16.1 hp
Net engine power15.1 hp
Engine displacement54.8 cu in
Excavator Performance
Maximum digging depth7' 7"
Maximum dumping height8' 0"
Bucket breakout force3417.2 lbf
Arm breakout force1918 lbf
Travel
Maximum traveling speed, published pair1.4 / 2.6 mph (Low / High)
Hydraulics
Pump configuration4.57 gpm × 2 / 2.75 gpm × 1
Auxiliary hydraulic line flow7.32 gpm
Dimensions & Weight
Operating weight, published configuration3703 lb
Operating weight configurationCanopy, rubber; published weight includes operator
Ground contact pressure3.8 psi
Sources
Specifications on this page are tied to the cited source records and the selected market/configuration version.
