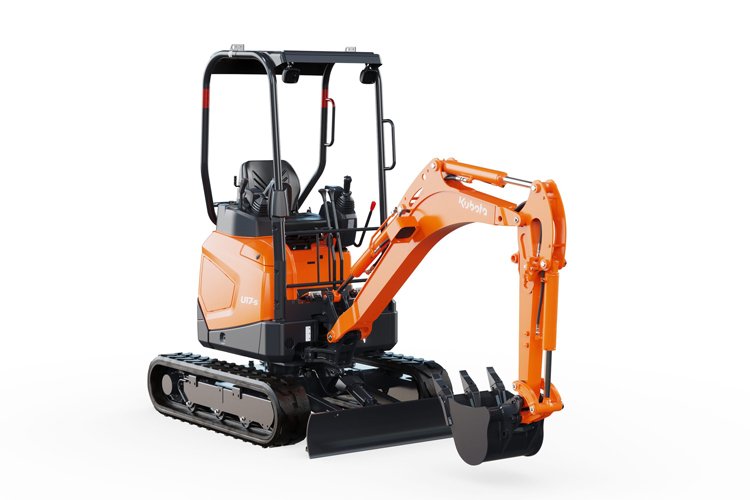

Kubota U17-5
Source-backed specifications, maintenance, parts and published market/configuration reference for this mini excavator.
Specification set: United States · Kubota USA 2026 Full Product Line specification · Current Current status corroborated by live Kubota USA series page. Operating weight uses the exact 2026 catalog basis shown in the specifications; slash-separated travel and auxiliary-flow values are preserved without assuming ordering beyond the published table.
Machine Configuration
Machine configurationMini excavator
Official market scopeUnited States current catalog
Kubota excavator seriesU Series
Engine
Engine modelD902-E4-BH-6EU
Published engine power17 hp
Engine displacement54.7 cu in
Excavator Performance
Maximum digging depth7' 5.9"
Maximum dumping height8' 1.2"
Bucket breakout force3417 lbf
Travel
Maximum traveling speed, published pair1.4 / 2.7 mph (Kubota published pair)
Hydraulics
Pump capacity12.3 gpm
Auxiliary hydraulic line flow7.3 gpm
Dimensions & Weight
Operating weight3702 lb
Operating weight configurationCanopy, rubber
Ground contact pressure3.8 psi
