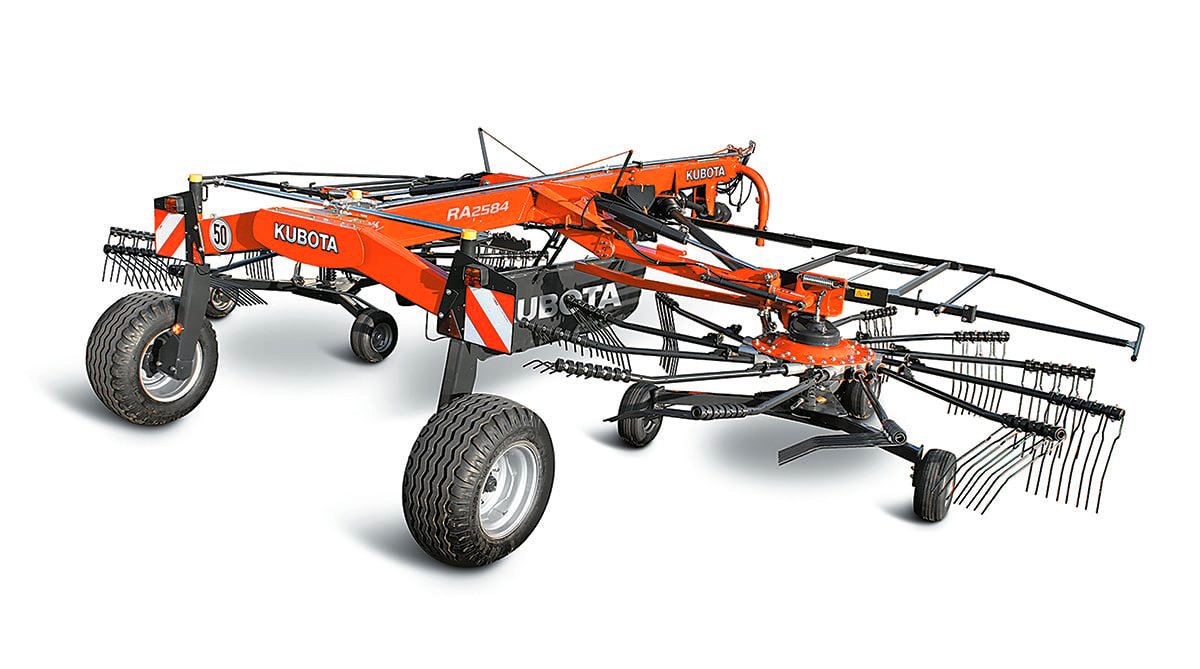

Kubota RA2584
Source-backed specifications and current market configuration for this rotary rake.
Specification set: United States · Current Kubota USA rotary rake The newer broad Tedders & Rakes brochure and 2026 full-line catalog publish 9 ft 9 in transport width and 4,299 lb. The recent RA2000 sheet instead prints 9 ft 2 in and 4,300 lb. This version keeps the newer broad/catalog values and preserves the dedicated-sheet conflict in notes.
Machine Configuration
Machine configurationRotary rake
Official market scopeUnited States current lineup
Kubota rake lineProLine
Dimensions & Weight
Transport width9' 9"
Transport length20' 6"
Transport / parking height11' 4" / 13' 5"
Weight4299 lb
Attachment to Tractor
Hitching system2-point lower links
Suggested PTO horsepower50 hp
Ground Following
Ground-following systemTerraLink Quattro
Rake Performance
Working width24' 11"–27' 7"
Swath width4' 7"–7' 3"
Theoretical capacity22.7 acres/h
Rotors & Tines
Rotor diameter12'
Swath deliveryCenter
Number of rotors2
Arms per rotor2 x 12
Double tines per arm4
Tine diameter0.4 in
Height adjustmentMechanical
Sources
Specifications on this page are tied to the cited source records and the selected market/configuration version.
