Tractor reference

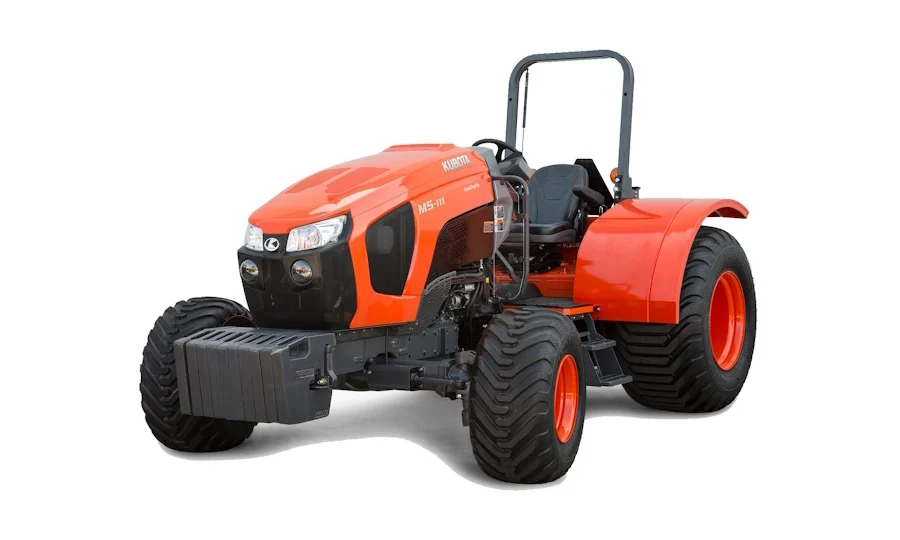

Kubota M5L-111
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · M5L-111 low-profile orchard tractor · Current 2026 low-profile model intended for fruit, nut orchard and other low-clearance work; folded-ROPS height is preserved separately from upright height.
Machine Configuration
Operator stationOpen station / foldable ROPS
Specialty tractor classLow-Profile
Engine
Engine manufacturerKubota
Engine typeKubota V3800-TIEF4 CRS direct-injection 4-cylinder turbocharged intercooled diesel
Cylinders4
Displacement230 cu in
Gross engine power105.6 hp
Transmission
Standard transmissionF12/R12 fully synchronized; F18/R18 with creep
Published traveling speed rangeUp to 20.1 mph
Maximum traveling speed20.1 mph
PTO
PTO power89 hp
Dimensions & Weight
Published height reference90.6 in ROPS upright / 66.3 in ROPS folded
Overall width77.6 in
Overall length155.9 in
Standard 4WD wheelbase88.6 in
Crop / ground clearance16.3 in
Tractor weight5908 lb
Sources
Kubota · official sourceKubota USA 2026 Full Product Line - Utility/Specialty Ag Tractors
