Tractor reference

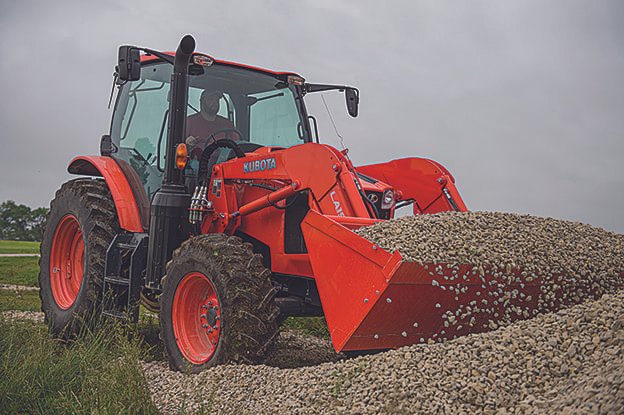

Kubota M6-101
Specifications, maintenance, parts and compatibility reference.
Specification set: United States - M6-101-1 DTC-F, 4WD Grand X Cab, Intelli-Shift Current US M6 -1 revision. Specifications use Kubota USA 2026 Full Product Line data; M6-141 suspended-front-axle dimensions are stored as a separate version rather than mixed into the standard-axle record.
Machine Configuration
Operator stationGrand X Cab
Drive type4WD
Engine
Engine manufacturerKubota
Engine modelV3800-TI-CRS
Engine typeCommon Rail direct-injection liquid-cooled diesel, 4-cylinder turbocharged with intercooler
Cylinders4
Displacement230 cu in
Rated engine power104.5 hp
Net engine power97.1 hp
Rated engine speed2600 rpm
Transmission
Standard transmissionIntelli-Shift 24F/24R; 32F/32R with optional creep
Main gear shift8-speed power shift
Maximum wheel-tractor transport speed20.7 mph
Range gear shift3-speed mechanical high/mid/low range
Shuttle shiftMicroprocessor-controlled electro-hydraulic shuttle
Main clutchMultiple wet disc
PTO
Rated PTO power82 hp
Rear PTO540 / 1000 rpm
Hydraulics
Rear hitch categoryCategory II
Standard implement pump flow18.7 gpm
Rear remote valves2 standard mechanical rear remotes; 3rd and 4th optional with built-in flow control
Rear 3-point lift capacity at 24 in.6834 lb
Dimensions & Weight
Overall length165.4 in
Wheelbase95.9 in
Overall height109.8 in
Overall width82.7 in
Base machine weight9601 lb
Capacities
Fuel tank capacity50.2 US gal
Compatible parts & kits
This source-backed list can include maintenance parts, mounting hardware and accessory kits. Serial-number and machine-configuration restrictions may still apply, so review each part page before ordering or installing.
Compatible attachments
Attachment compatibility is stored separately from service parts. Configuration requirements below come from the cited compatibility source and can vary by driveline or tractor version.
Front loaderKubota LA1955Kubota current M6 product material maps LA1955 to M6-101/M6-111. Confirm loader mounting kit and tractor serial/configuration before installation.Front loader details: M6-101/M6-111 performance-matched loader; height and power boom-cylinder positions; Euro Quick Attach coupler type optional
Height position: 4,178 lb at maximum height; Power position: 4,299 lb at maximum heightLift height: Height position: 145.7 in to pivot pin; Power position: 132.7 in to pivot pin
Sources
Kubota · official sourceKubota USA 2026 Full Product Line - M6 current front-loader mapping
