Tractor reference

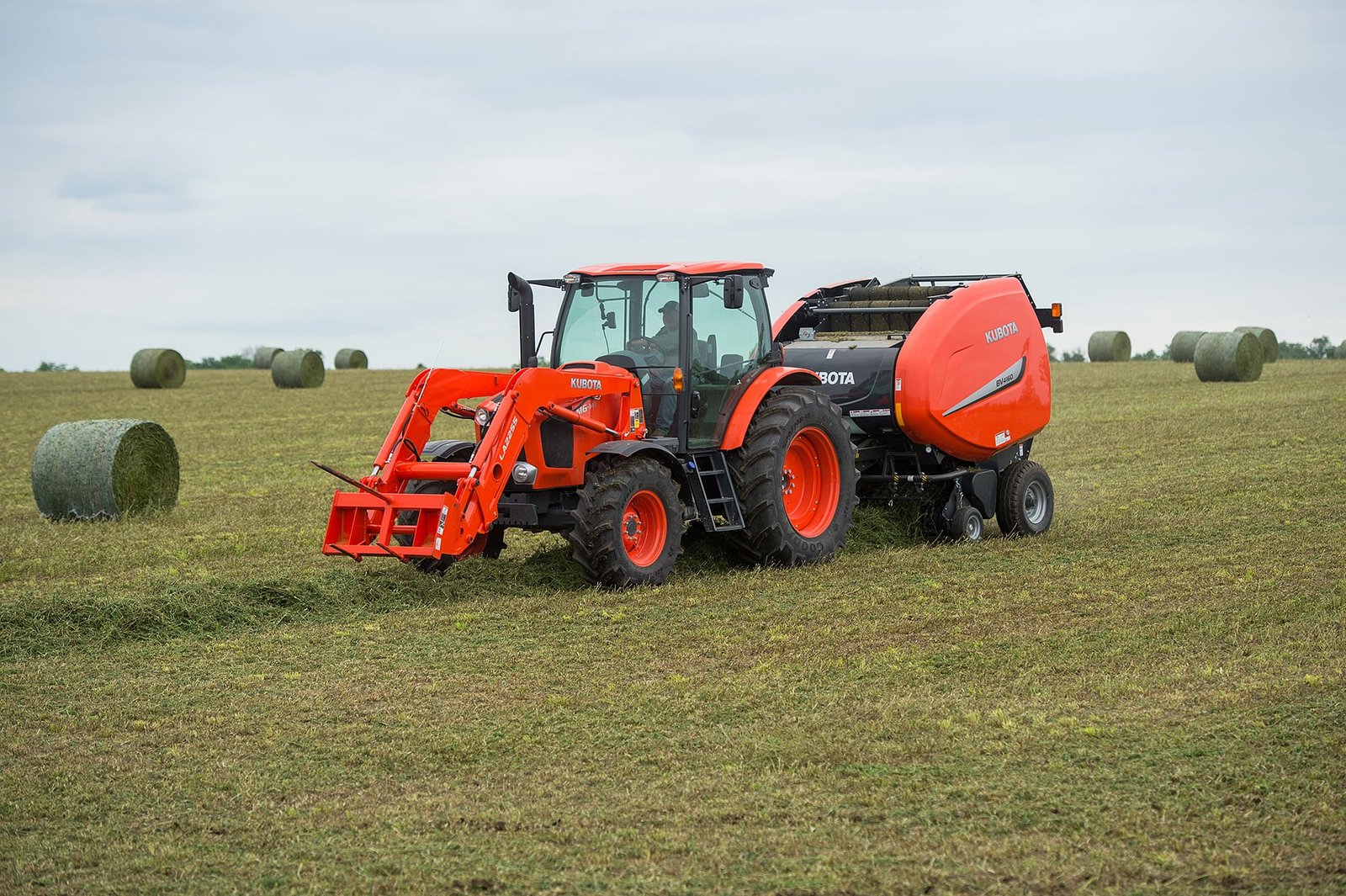

Kubota M6-131
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · M6-131-1 DTC-F, 4WD Grand X Cab, Intelli-Shift · Current Current US M6 -1 revision. Specifications use Kubota USA 2026 Full Product Line data; M6-141 suspended-front-axle dimensions are stored as a separate version rather than mixed into the standard-axle record.
Machine Configuration
Operator stationGrand X Cab
Engine
Engine manufacturerKubota
Engine familyV6108-TI-CRS
Engine typeCommon Rail direct-injection liquid-cooled diesel, 4-cylinder turbocharged with intercooler
Cylinders4
Displacement374 cu in
Net engine power123.2 hp
Gross engine power131.6 hp
Rated engine speed2200 rpm
Transmission
Standard transmissionIntelli-Shift 24F/24R; 32F/32R with optional creep
Main gear shift8-speed power shift
Shuttle shiftMicroprocessor-controlled electro-hydraulic shuttle
Maximum traveling speed22.7 mph
Range gear shift3-speed mechanical high/mid/low range
Driveline4WD
Main clutchMultiple wet disc
PTO
PTO power104 hp
PTO configuration540 / 1000 rpm
Hydraulics
Hydraulic pump rated output20.4 gpm
Standard rear remote valves2 standard mechanical rear remotes; 3rd and 4th optional with built-in flow control
3-point hitchCategory II
3-point hitch lift capacity at 24 in. behind lift point6834 lb
Dimensions & Weight
Overall width85.8 in
Overall height113.2 in
Overall length171.7 in
Standard 4WD wheelbase105.9 in
Tractor weight10945 lb
Capacities
Fuel tank capacity50.2 US gal
Compatible parts & kits
Parts shown here are limited to the selected reference context plus generic machine-level fitment. Configuration-specific fitment, evidence confidence and the direct fitment source are shown under each part when available.
6A671-75090Cabin Air Recirculation FilterApplies to: Current M6 -1 version-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M6-131DTC-1 parts catalog - current service filter references →Cabin Air Filters →
T1855-71600Cab Air FilterApplies to: Current M6 -1 version-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M6-131DTC-1 parts catalog - current service filter references →Cabin Air Filters →
1G311-43380Fuel Filter Separator ElementApplies to: Current M6 -1 version-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M6-131DTC-1 parts catalog - current service filter references →Fuel / Water Separators →
HH1J0-43172Fuel Filter CartridgeApplies to: Current M6 -1 version-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota HH1J0-43172 - current M6-131/M6-141 model fitment →Fuel Filters →
HH3S0-82590Hydraulic / Transmission FilterApplies to: Current M6 -1 version-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota HH3S0-82590 - current M6-101/111/131/141 model fitment →Hydraulic Filters →
Documented attachment fitment
Attachment fitment is stored separately from the specification/parts version selector. Multiple cited records for the same attachment are grouped below rather than shown as duplicate attachments. A listed attachment may still require a specific axle, driveline, transmission or tractor configuration.
Front loaderKubota LA2255Fitment note: Kubota current M6 product material maps LA2255 to M6-131/M6-141. Confirm loader mounting kit, front-axle configuration and tractor serial before installation.Front loader details: M6-131/M6-141 performance-matched loader; height and power boom-cylinder positions; Euro Quick Attach coupler type optionalFitment source: Kubota USA 2026 Full Product Line - M6 current front-loader mapping →
Height position: 4,711 lb at maximum height; Power position: 4,877 lb at maximum heightLift height: Height position: 161.4 in to pivot pin; Power position: 148.2 in to pivot pin
Sources
Kubota · official sourceKubota USA 2026 Full Product Line - M6 current front-loader mapping
Messicks · supplier referenceKubota M6-131DTC-1 parts catalog - current service filter references
Messicks · supplier referenceKubota HH1J0-43172 - current M6-131/M6-141 model fitment
Messicks · supplier referenceKubota HH3S0-82590 - current M6-101/111/131/141 model fitment
