Tractor reference

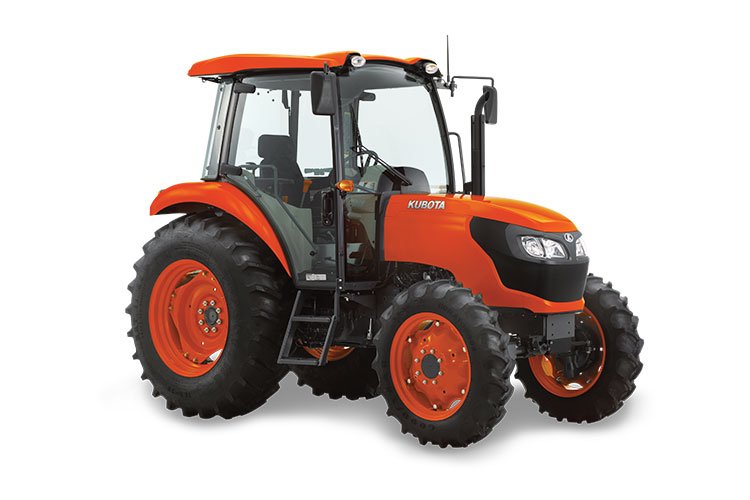

Kubota M6060
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · M6060 HFC 2WD Cab / HD 4WD ROPS / HDC 4WD Cab, F8/R8 Hydraulic Shuttle · Current Current Kubota USA M60 Series configuration. Dimensions and weights are retained as configuration variants where 2WD, 4WD, ROPS and Cab differ.
Engine
Engine manufacturerKubota
Engine familyV3307-CR-TE4
Engine type4-cylinder in-line diesel, Common Rail System, direct injection
Cylinders4
Net engine power63.5 hp
Fuel systemCommon Rail System (CRS), direct injection
Gross engine power66.4 hp
Engine displacement3.3 L
Rated engine speed2400 rpm
AspirationTurbocharged
Transmission
Standard transmission8 forward / 8 reverse fully synchronized Hydraulic Shuttle
BrakesMechanically operated wet disc
4WD clutch engagementMechanical on-the-go on 4WD configuration
SteeringHydrostatic power steering
PTO
PTO power56 hp
PTO configurationLive-independent PTO; 540 rpm, 540/540E optional
Hydraulics
Hydraulic control systemPosition, draft (top-link sensing) and mixed control
3-point hydraulic pump capacity11 gpm (41.6 L/min)
Standard rear remote valves1 standard; 2nd, 3rd and flow-control valve optional
3-point hitchCategory I / II
3-point hitch lift capacity at 24 in. behind lift point3307 lb
Dimensions & Weight
Overall length2WD Cab: 142.7 in (3625 mm); 4WD ROPS/Cab: 138.0 in (3505 mm)
Overall height4WD ROPS: 96.9 in (2460 mm); Cab: 100.6 in (2555 mm)
Overall width73 in
Wheelbase2WD Cab: 84.4 in (2145 mm); 4WD: 83.1 in (2110 mm)
Crop / ground clearance18.1 in
Tractor weight4WD ROPS: 5005 lb (2270 kg); 2WD Cab: 5226 lb (2370 kg); 4WD Cab: 5358 lb (2430 kg)
Capacities
Fuel tank capacityROPS: 18.5 US gal (70 L); Cab: 23.8 US gal (90 L)
Electrical
AlternatorROPS: 45 A; Cab: 60 A; 100 A optional
Compatible parts & kits
Parts shown here are limited to the selected reference context plus generic machine-level fitment. Configuration-specific fitment, evidence confidence and the direct fitment source are shown under each part when available.
3A111-19130Inner Air Filter Safety ElementApplies to: Model-family service filter; verify tractor serial/configurationEvidence: High-confidence source-backed fitment · Filter Kit for Kubota Engine V3307 Tractor M6060 M7060 →Engine Air Filters →
59800-26110Outer Air Filter ElementApplies to: Model-family service filter; verify tractor serial/configurationEvidence: High-confidence source-backed fitment · Kubota 59800-26110 ELEMENT, OUTER A/C →Engine Air Filters →
HH1C0-32430Engine Oil FilterApplies to: Engine-model-derived reference; confirm tractor IPLEvidence: High-confidence source-backed fitment · Kubota Engine America Genuine Oil Filters - Oil Filter Selection Guide →Engine Oil Filters →
HH1J1-43172Fuel Filter CartridgeApplies to: Current Kubota fuel-filter number; confirm tractor serial/configurationEvidence: High-confidence source-backed fitment · Kubota HH1J1-43172 Fuel Filter Cartridge - current model fitment catalog →Fuel Filters →
HHTA0-37710Hydraulic Oil FilterApplies to: Model-family service filter; verify tractor serial/configurationEvidence: High-confidence source-backed fitment · Kubota HHTA0-37710 CARTRIDGE, OIL FILTER (HYD) →Hydraulic Filters →
Documented attachment fitment
Attachment fitment is stored separately from the specification/parts version selector. Multiple cited records for the same attachment are grouped below rather than shown as duplicate attachments. A listed attachment may still require a specific axle, driveline, transmission or tractor configuration.
Front loaderKubota LA1154Fitment note: Kubota 2026 Full Product Line brochure lists LA1154 as the compatible front loader for M6060.Front loader details: LA1154 boom cylinder fulcrum: height-position or power-positionFitment source: Kubota 2026 Full Product Line Brochure - M60 Series and LA1154 compatibility →
At maximum lift height: 2,469 lb (1,120 kg) height-position; 2,928 lb (1,328 kg) power-positionLift height: Pivot pin: 132.7 in (3370 mm) height-position; 117.2 in (2977 mm) power-position
Sources
Kubota · official sourceKubota USA M60 Series current brochure - M6060
Kubota · official sourceKubota USA M60 Series specification sheet - M6060
FridayParts · supplier referenceFilter Kit for Kubota Engine V3307 Tractor M6060 M7060
Kubota Parts Depot at MB Tractor · primary supplier sourceKubota 59800-26110 ELEMENT, OUTER A/C
Kubota Engine America · official sourceKubota Engine America Genuine Oil Filters - Oil Filter Selection Guide
Messicks · supplier referenceKubota HH1J1-43172 Fuel Filter Cartridge - current model fitment catalog
Kubota Parts Depot at MB Tractor · primary supplier sourceKubota HHTA0-37710 CARTRIDGE, OIL FILTER (HYD)
Kubota · official sourceKubota 2026 Full Product Line Brochure - M60 Series and LA1154 compatibility
