Tractor reference

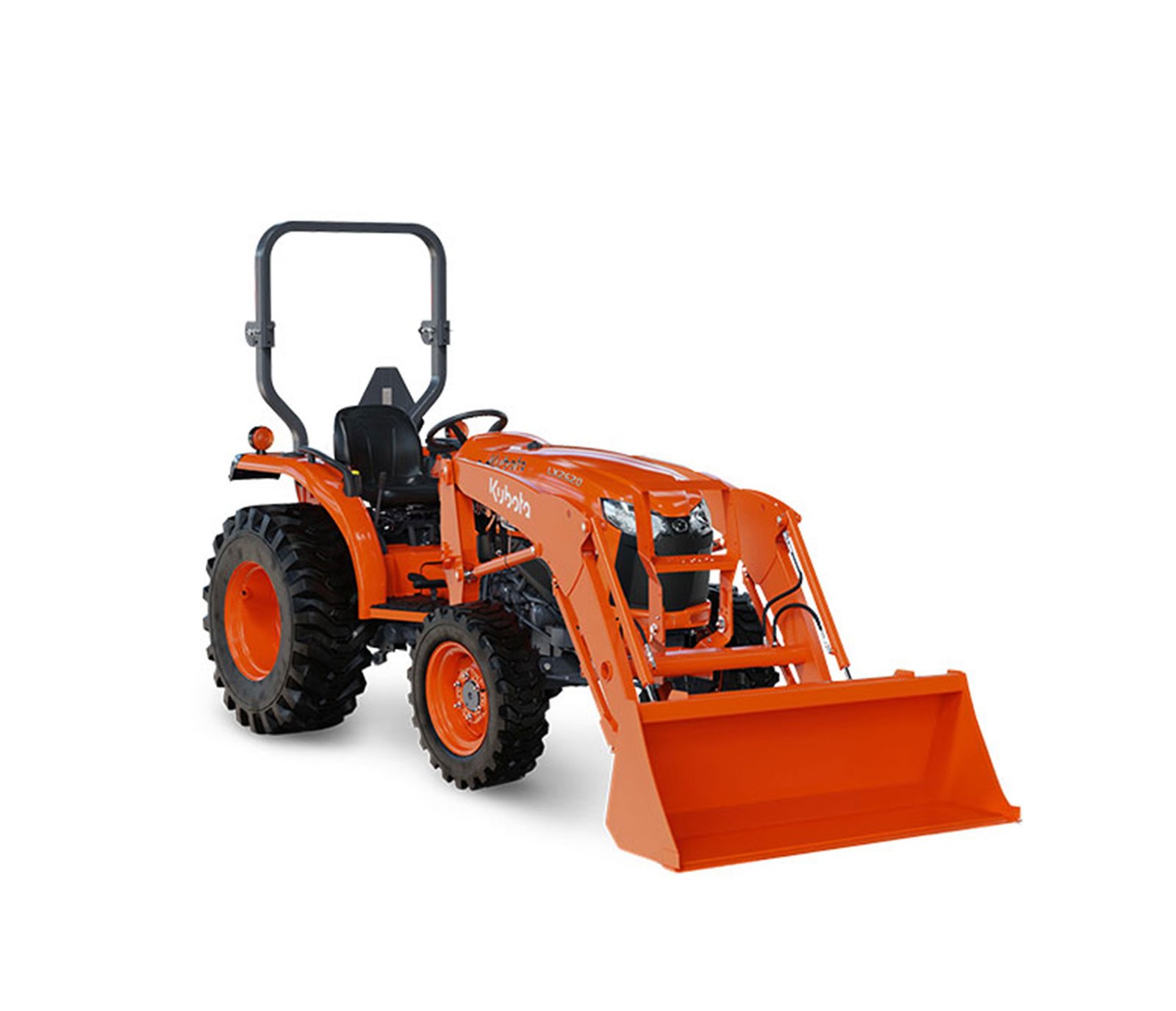

Kubota LX2620
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · LX2620HSD 4WD, 3-range HST, ROPS · Current Current US LX20 configuration confirmed by Kubota USA; detailed specification values come from the current LX20 brochure.
Reference versions: United States · LX2620HSD 4WD, 3-range HST, ROPS · Current · United States · LX2620HSDC 4WD, 3-range HST, factory cab · Current · United States · LX2620SUHSD Special Utility, 4WD, 3-range HST, ROPS · Current
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Engine
Engine manufacturerKubota
Engine familyD1305-E4-D36R
Engine typeIndirect injection, vertical, water-cooled 4-cycle diesel
Cylinders3
Displacement77 cu in
Displacement1261 cm3
Gross engine power23.3 hp
Rated engine speed2500 rpm
Transmission
Standard transmissionHST, 3 ranges
BrakesMulti-plate wet disc
Driveline4WD
SteeringHydrostatic power steering
PTO
PTO power19.4 hp
PTO actuationIndependent PTO
PTO configuration540 rpm rear PTO
Hydraulics
Hydraulic control systemPosition control valve
Hydraulic systemOpen center, dual pump
Hydraulic pump rated output8.7 gpm
3-point hitchCategory I
3-point lift capacity at lift points2139 lb
3-point hitch lift capacity at 24 in. behind lift point1676 lb
Dimensions & Weight
Overall width53.7 in
Overall length101.8 in
Standard 4WD wheelbase65.6 in
Front axle clearance14.6 in
Tractor weight1775 lb
Turning radius6.9 ft
Capacities
Engine oil capacity4.2 US qt
Transmission case capacity4 US gal
Compatible parts & kits
Parts shown here are limited to the selected reference context plus generic machine-level fitment. Configuration-specific fitment, evidence confidence and the direct fitment source are shown under each part when available.
32721-58242Inner Safety Air Filter ElementApplies to: Current US LX20 configuration-specific service reference; confirm tractor serial number before ordering.Evidence: High-confidence source-backed fitment · Kubota LX2620HSD parts catalog - service filter references →Engine Air Filters →
6C060-99414Outer Air Filter ElementApplies to: Current US LX20 configuration-specific service reference; confirm tractor serial number before ordering.Evidence: High-confidence source-backed fitment · Kubota LX2620HSD parts catalog - service filter references →Engine Air Filters →
HH150-32094Engine Oil FilterApplies to: Current US LX20 configuration-specific service reference; confirm tractor serial number before ordering.Evidence: High-confidence source-backed fitment · Kubota LX2620HSD parts catalog - service filter references →Engine Oil Filters →
6A320-59930Fuel Filter ElementApplies to: Current US LX20 configuration-specific service reference; confirm tractor serial number before ordering.Evidence: High-confidence source-backed fitment · Kubota LX2620HSD parts catalog - service filter references →Fuel Filters →
HHK70-14073HST / Transmission Oil Filter CartridgeApplies to: Current US LX20 configuration-specific service reference; confirm tractor serial number before ordering.Evidence: High-confidence source-backed fitment · Kubota LX2620HSD parts catalog - service filter references →Transmission Filters →
Documented attachment fitment
Attachment fitment is stored separately from the specification/parts version selector. Multiple cited records for the same attachment are grouped below rather than shown as duplicate attachments. A listed attachment may still require a specific axle, driveline, transmission or tractor configuration.
BackhoeKubota BH77Fitment note: Kubota describes BH77 as performance matched to the LX20 Series. Confirm the LX2620-specific subframe, three-point/mower interaction and tractor configuration before ordering.Backhoe details: 180° swing arc; approximate net weight 824.5 lb excluding buckets and subframes. Kubota describes BH77 as performance matched to the LX20 Series; tractor-specific subframe requirements must be confirmed.Fitment source: Kubota USA LX20 Series brochure - LA535, LA545 and BH77 specifications →
86.8 in digging depth at 2-ft flat bottom; 123.7 in reach from swing pivotWorking height: 123 in operating height fully raised
Front loaderKubota LA535Fitment note: Kubota LX20 loader table pairs LA535 with the LX2620 platform. Confirm ROPS/cab hydraulic coupler and Swift-Tach kit requirements before installation.Front loader details: Standard 2-lever quick coupler; optional mechanical self-leveling and Swift-Tach. Swift-Tach option is for ROPS tractors.Fitment source: Kubota USA LX20 Series brochure - LA535, LA545 and BH77 specifications →
1,067 lb at pivot pin/max height; 1,324 lb at pivot pin @ 1.5 mLift height: 84.0 in maximum lift height at pivot pin
Snow Blower · Conditional fitmentKubota LX2963Requirement: Requires LX2940B front hitch and the correct LX2620 mid-PTO driveline kit. Compatible with standard LX2620 HSD/HSDC configurations; the official snow brochure excludes the LX2620 SU configuration.Snow Blower details: Gearbox reduction; hydraulic chute rotation; manual chute deflection. Requires LX2940B front hitch on LX2620 or LX6971 front hitch on LX3520/LX4020 plus the correct mid-PTO driveline kit. Not compatible with LX2620 SU, LX3520DTN narrow, or LX3520 SU configurations.Fitment source: Kubota USA LX20 snow implements brochure - snow blower compatibility and requirements →
63 in residential 2-stage snow blowerWorking height: Front PTO-driven snow implement
Snow Blower · Conditional fitmentKubota LX2970Requirement: Requires LX2940B front hitch and the correct LX2620 mid-PTO driveline kit. Compatible with standard LX2620 HSD/HSDC configurations; the official snow brochure excludes the LX2620 SU configuration.Snow Blower details: Oil-bath reduction gearboxes; hydraulic chute rotation; manual deflection; abrasion-resistant housing and impeller. Requires LX2940B front hitch on LX2620 or LX6971 front hitch on LX3520/LX4020 plus the correct mid-PTO driveline kit. Not compatible with LX2620 SU, LX3520DTN narrow, or LX3520 SU configurations.Fitment source: Kubota USA LX20 snow implements brochure - snow blower compatibility and requirements →
51 in commercial 2-stage snow blowerWorking height: Front PTO-driven snow implement
Snow Blower · Conditional fitmentKubota LX2980Requirement: Requires LX2940B front hitch and the correct LX2620 mid-PTO driveline kit. Compatible with standard LX2620 HSD/HSDC configurations; the official snow brochure excludes the LX2620 SU configuration.Snow Blower details: Oil-bath reduction gearboxes; hydraulic chute rotation; manual deflection; abrasion-resistant housing and impeller. Requires LX2940B front hitch on LX2620 or LX6971 front hitch on LX3520/LX4020 plus the correct mid-PTO driveline kit. Not compatible with LX2620 SU, LX3520DTN narrow, or LX3520 SU configurations.Fitment source: Kubota USA LX20 snow implements brochure - snow blower compatibility and requirements →
64 in commercial 2-stage snow blowerWorking height: Front PTO-driven snow implement
Sources
Kubota · official sourceKubota USA LX20 Series brochure - LA535, LA545 and BH77 specifications
Messicks · supplier referenceKubota LX2620HSD parts catalog - service filter references
Kubota · official sourceKubota USA LX20 snow implements brochure - snow blower compatibility and requirements
