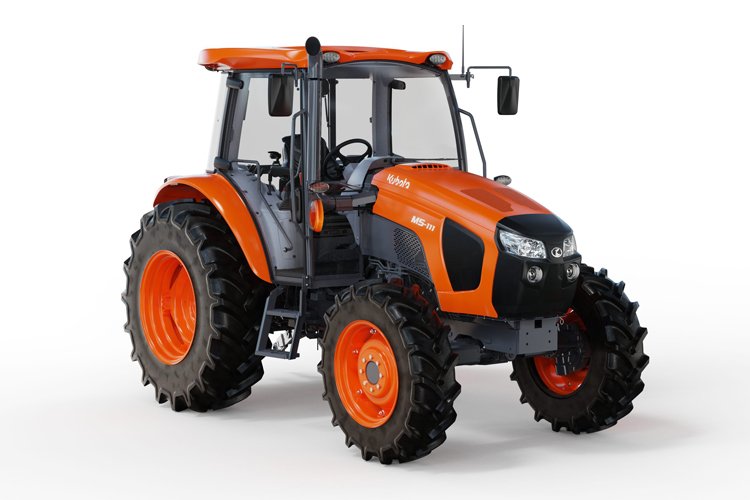

Kubota M5-111
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · M5-111HD 4WD open station, F8/R8 · Current Current US M5 variant confirmed by Kubota USA 2026 product material and active 2026 sales offer; specification values use the 2026 Full Product Line table.
Reference versions: United States · M5-111HD 4WD open station, F8/R8 · Current · United States · M5-111HD12 4WD open station, F12/R12 · Current · United States · M5-111HDC 4WD cab, F8/R8 · Current · United States · M5-111HDC12 4WD cab, F12/R12 · Current · United States · M5-111HDC24 4WD cab, F24/R24 non-clutch dual-speed transmission · Current · United States · M5-111HF 2WD open station, F8/R8 · Current · United States · M5-111HFC 2WD cab, F8/R8 · Current
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Machine Configuration
Operator stationOpen Station
Engine
Engine manufacturerKubota
Engine familyV3800CR-TIER4
Engine type4-cylinder turbocharged Common Rail direct-injection diesel with intercooler, DPF, DOC and SCR
Cylinders4
Displacement230 cu in
Gross engine power105.6 hp
Transmission
Standard transmissionF8/R8
Shuttle shiftElectro-hydraulic shuttle
BrakesHydraulic wet disc
Maximum traveling speed18.6 mph
Driveline4WD
SteeringHydrostatic power steering
Main clutchMultiple wet disc
PTO
PTO power89 hp
PTO actuationLive-independent PTO, electro-hydraulic clutch with brake
PTO configuration540 rpm; 540E optional
Hydraulics
Hydraulic control systemPosition, draft (top-link sensing) and mixed control
Rated flow at remote outlets15.7 gpm
Standard rear remote valves2 standard (maximum 3)
3-point hitchCategory II with telescopic lower-link ends and stabilizers
3-point hitch lift capacity at 24 in. behind lift point4630 lb
Dimensions & Weight
Overall width79.1 in
Overall height99.8 in
Overall length155.9 in
Standard 4WD wheelbase88.6 in
Tractor weight6283 lb
Capacities
Fuel tank capacity27.7 US gal
Compatible parts & kits
Parts shown here are limited to the selected reference context plus generic machine-level fitment. Configuration-specific fitment, evidence confidence and the direct fitment source are shown under each part when available.
59700-26112Outer Air Cleaner ElementApplies to: us-current-hd-4wd-open model-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M5-111HD/HD-1 parts catalog - service filter references →Engine Air Filters →
HH1C0-32430Engine Oil FilterApplies to: us-current-hd-4wd-open model-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M5-111HD/HD-1 parts catalog - service filter references →Engine Oil Filters →
HHTA0-37710Hydraulic Oil FilterApplies to: us-current-hd-4wd-open model-specific dealer-catalog service referenceEvidence: High-confidence source-backed fitment · Kubota M5-111HD/HD-1 parts catalog - service filter references →Hydraulic Filters →
Documented attachment fitment
Attachment fitment is stored separately from the specification/parts version selector. Multiple cited records for the same attachment are grouped below rather than shown as duplicate attachments. A listed attachment may still require a specific axle, driveline, transmission or tractor configuration.
Front loaderKubota LA1854Fitment note: Kubota USA 2026 Full Product Line explicitly lists LA1854 as the compatible front loader for the current M5 Series.Front loader details: Height/power boom-cylinder fulcrum positions; standard quick coupler, optional Euro-type quick coupler and optional single-lever hydraulic hose quick coupler.Fitment source: Kubota USA 2026 Full Product Line - M5 compatible front loader LA1854 →
Lift capacity at pivot pin/max height: 3,990 lb height-position / 4,144 lb power-positionLift height: Maximum pivot-pin lift height: 145.7 in height-position / 131.9 in power-position
Sources
Kubota · official sourceKubota USA 2026 Full Product Line - M5 compatible front loader LA1854
Messicks · supplier referenceKubota M5-111HD/HD-1 parts catalog - service filter references
