Tractor reference

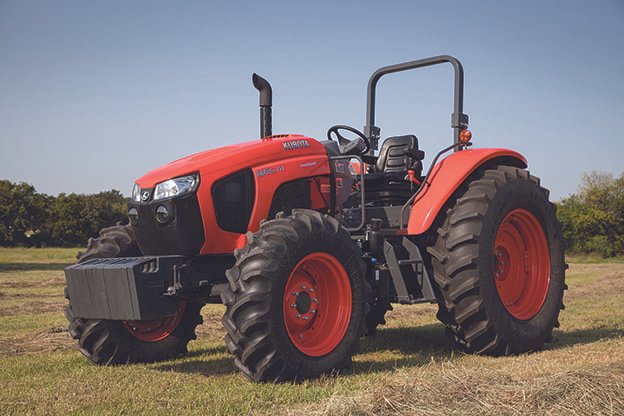

Kubota M6S-111
Specifications, maintenance, parts and compatibility reference.
Reference set: United States · M6S-111SDS2, 4WD, open station, Swing-Shift Plus · Current Current 2026 M6S family configuration. 2026 Full Product Line supplies the SHF/SHC, SHD/SHDC and SDS2/SDSC configuration groups; current Kubota product page independently confirms the active M6S-111 family.
Reference versions: United States · M6S-111SDS2, 4WD, open station, Swing-Shift Plus · Current · United States · M6S-111SDSC, 4WD, cab, Swing-Shift Plus · Current · United States · M6S-111SHC, 2WD, cab, Swing-Shift · Current · United States · M6S-111SHD, 4WD, open station, Swing-Shift · Current · United States · M6S-111SHDC, 4WD, cab, Swing-Shift · Current · United States · M6S-111SHF, 2WD, open station, Swing-Shift · Current
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Current is selected by default. Historical, manual-specific and market-unspecified contexts stay separate so their parts and service data are not presented as current-US fitment.
Machine Configuration
Operator stationOpen Station
Engine
Engine manufacturerKubota
Engine familyV3800-TIEF4
Engine typeDirect-injection liquid-cooled 4-cycle diesel, common rail, turbocharged/intercooled, DPF/DOC/SCR
Cylinders4
Displacement230 cu in
Gross engine power114.1 hp
Rated engine speed2600 rpm
Transmission
Standard transmissionF32/R32
Creep transmission optionF48/R48
Shuttle shiftElectro-hydraulic
Maximum traveling speed23.3 mph
Driveline4WD
Main clutchHydraulic wet clutch
PTO
PTO power95 hp
PTO configuration540 / 1000 rpm
Hydraulics
Hydraulic systemOpen-center; top-link draft sensing
Hydraulic flow17.2-17.6 gpm depending on exact configuration/source revision
Standard rear remote valves2 standard; 3rd remote and flow-control valve optional
3-point hitchCategory II
Optional 3-point lift capacity at 24 in. behind lift point5732 lb
3-point hitch lift capacity at 24 in. behind lift point3858 lb
Dimensions & Weight
Overall width91.5 in
Overall height105.1 in
Overall length163.2 in
Standard 4WD wheelbase95.9 in
Tractor weight8466 lb
Capacities
Fuel tank capacity46.2 US gal
Compatible parts & kits
Parts shown here are limited to the selected reference context plus generic machine-level fitment. Configuration-specific fitment, evidence confidence and the direct fitment source are shown under each part when available.
59700-26112Outer Air Cleaner ElementApplies to: Current M6S-111 version-specific dealer fitment referenceEvidence: High-confidence source-backed fitment · Kubota 59700-26112 outer air filter - M6S-111 model fitment →Engine Air Filters →
HH1C0-32430Engine Oil FilterApplies to: Current M6S-111 version-specific dealer fitment referenceEvidence: High-confidence source-backed fitment · Kubota HH1C0-32430 - M6S-111 model fitment →Engine Oil Filters →
HHTA0-37710Hydraulic Oil FilterApplies to: Current M6S-111 version-specific dealer fitment referenceEvidence: High-confidence source-backed fitment · Kubota HHTA0-37710 hydraulic filter - M6S-111 model fitment →Hydraulic Filters →
Documented attachment fitment
Attachment fitment is stored separately from the specification/parts version selector. Multiple cited records for the same attachment are grouped below rather than shown as duplicate attachments. A listed attachment may still require a specific axle, driveline, transmission or tractor configuration.
Front loaderKubota LA1941Fitment note: Kubota USA current M6S page explicitly shows the M6S-111 with LA1941 and publishes 4,178 lb height-position / 4,299 lb power-position lift capacities. Verify mounting kit and tractor configuration before installation.Front loader details: Current Kubota M6S product page identifies the M6S-111 / LA1941 pairing. Maximum lift-height dimensions are intentionally not imported until a direct LA1941 specification table is verified.Fitment source: Kubota USA current M6S product page - M6S-111 / LA1941 loader and lift capacity →
Height-position lift capacity: 4,178 lb; Power-position lift capacity: 4,299 lb
Sources
Kubota · official sourceKubota USA 2026 Full Product Line - current M6S Series specification table
Coleman Equipment · primary supplier sourceKubota 59700-26112 outer air filter - M6S-111 model fitment
Bingham Equipment Company · primary supplier sourceKubota HH1C0-32430 - M6S-111 model fitment
Kubota Parts Depot at MB Tractor · primary supplier sourceKubota HHTA0-37710 hydraulic filter - M6S-111 model fitment
Kubota · official sourceKubota USA current M6S product page - M6S-111 / LA1941 loader and lift capacity
